FSE offers a range of ice storage solutions These solutions are designed to meet various operational needs. They ensure efficient and reliable ice management for industrial and commercial applications. Our ice storage systems come in three configurations:

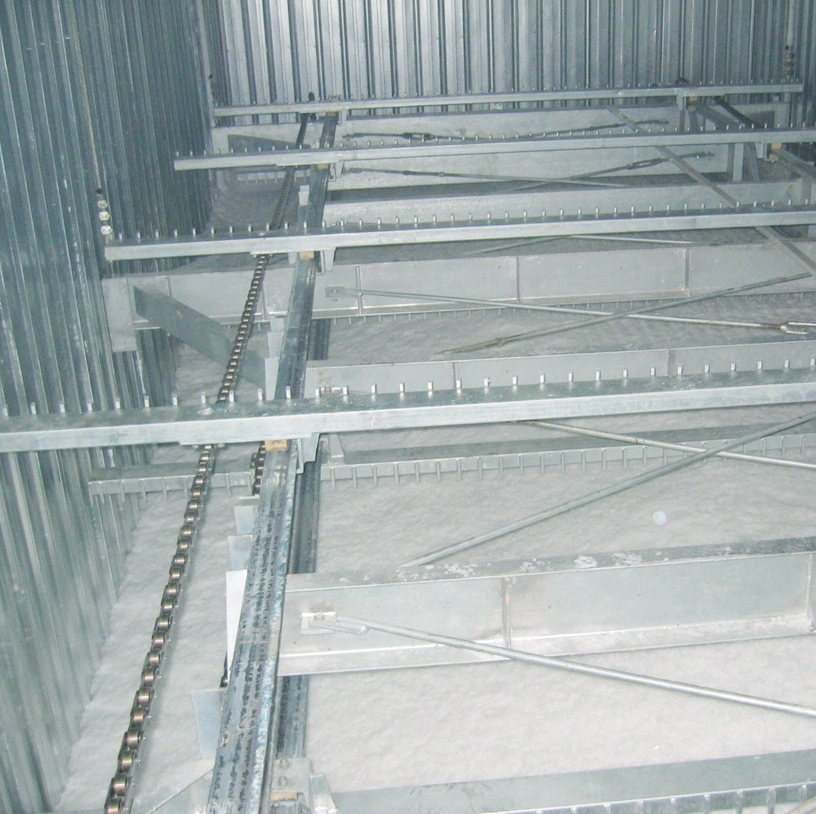

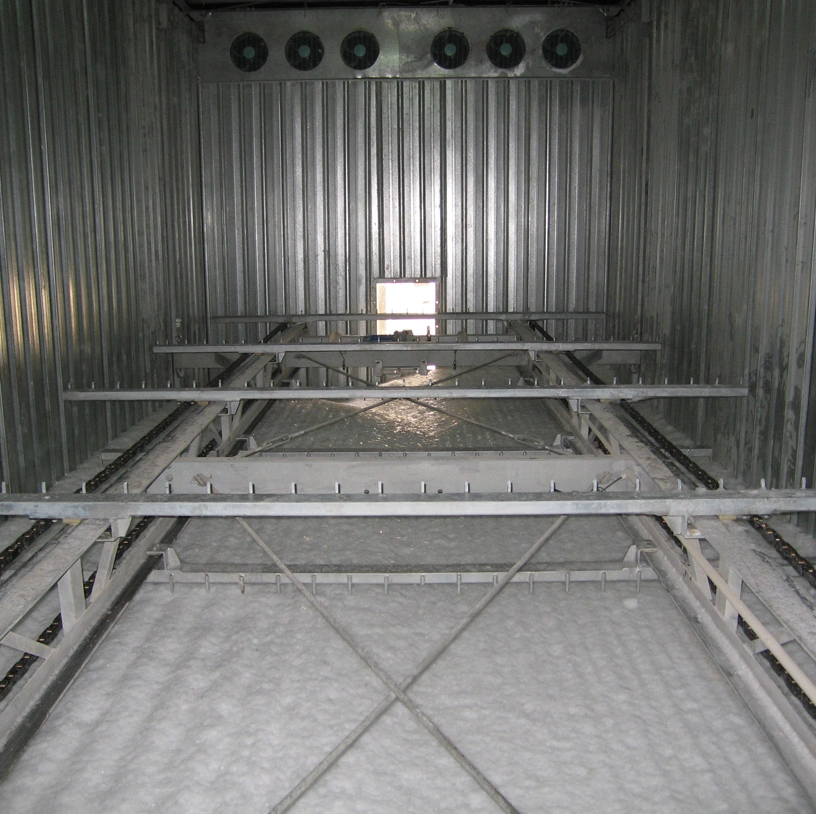

Fully Automatic Ice Storage
With a storage capacity ranging from 10 to 150 tons, the fully automatic ice storage system offers hands-free operation. This ensures continuous ice supply without manual intervention. This system is ideal for large-scale operations that require a steady and high-volume supply of ice.
Semi-Automatic Ice Storage
Designed for flexibility, the semi-automatic ice storage system provides a balance between automation and manual control. It can be customized based on customer-specific requirements. This makes it a cost-effective solution for medium to large-scale applications.

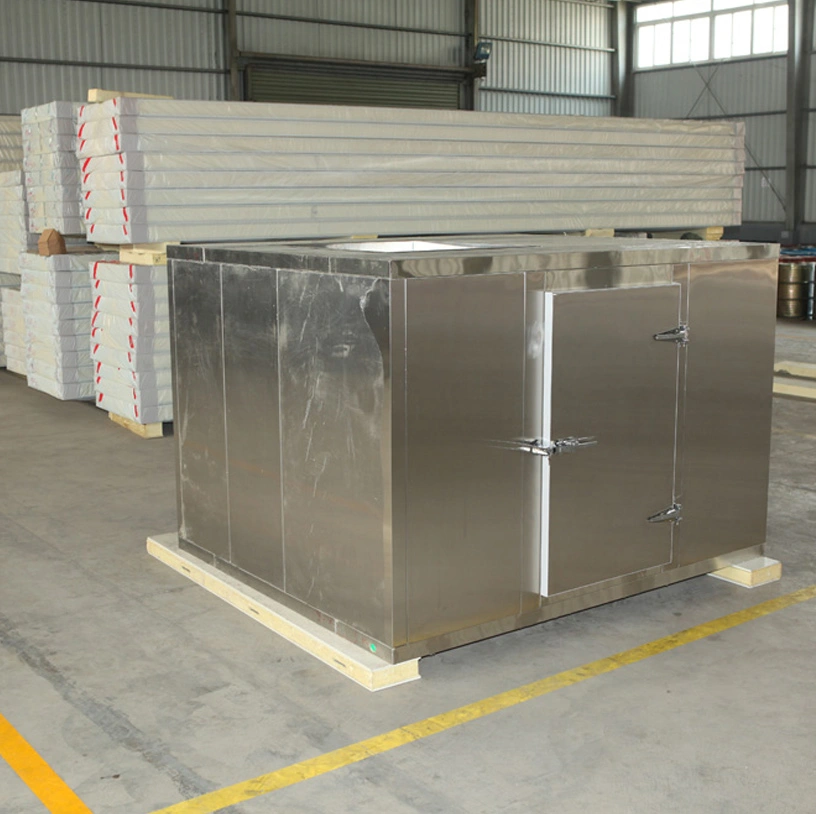

Modular Ice Storage
Our modular ice storage systems offer a customizable design. They can be tailored to meet the exact storage needs
Ice Storage Parameter Table | ||||||
Model | Nominal ice | Type | L(MM) | W(MM) | H(MM) | Net weight(Tons) |
AIS8 | 14 | Containerized | 6058 | 2438 | 2896 | 7.5 |
AIS18 | 29 | Containerized | 12192 | 2438 | 2591 | 12.3 |
AIS23 | 36 | Containerized | 12192 | 2438 | 2896 | 13.6 |
AIS35 | 67 | Combined | 12192 | 3530 | 3715 | 20.4 |
AIS40 | 81 | Combined | 12192 | 4130 | 3715 | 22.4 |
AIS50 | 98 | Combined | 12192 | 5191 | 3565 | 23.3 |
AIS50S | 98 | Combined | 12192 | 4130 | 4195 | 25.3 |
AIS60 | 117 | Combined | 12192 | 5191 | 3965 | 26.1 |
AIS75 | 128 | Combined | 12192 | 5191 | 4195 | 26.6 |
AIS90 | 159 | Combined | 12192 | 5191 | 4865 | 28.3 |
AIS100 | 200 | Combined | 15000 | 5191 | 4965 | 41.5 |

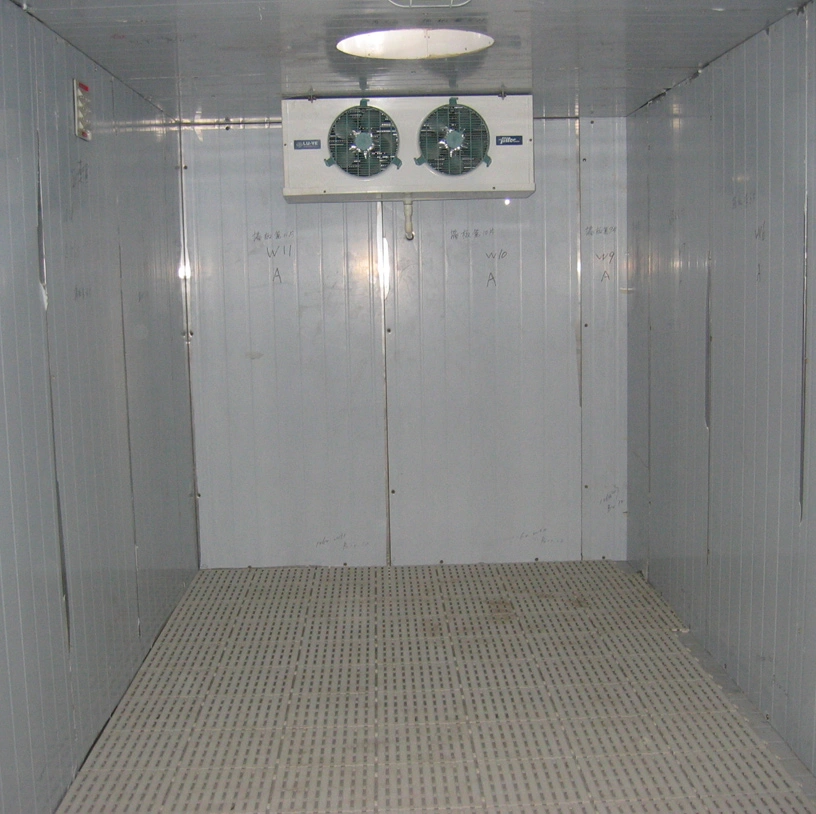

Double Insulated Layers: Designed with double insulation to maintain constant low temperatures.
Air Circulation Layer: Surrounds the ice to ensure even cooling and prevent clumping.
Cooling Device: Equipped with a cooling system to maintain temperatures between -5°C and -8°C, keeping the ice dry and crispy.
High Capacity: Can store a large amount of ice while maintaining optimal conditions.
Efficient Cooling: Ensures ice remains fresh and ready to use, even when the bin is fully loaded with ice.
