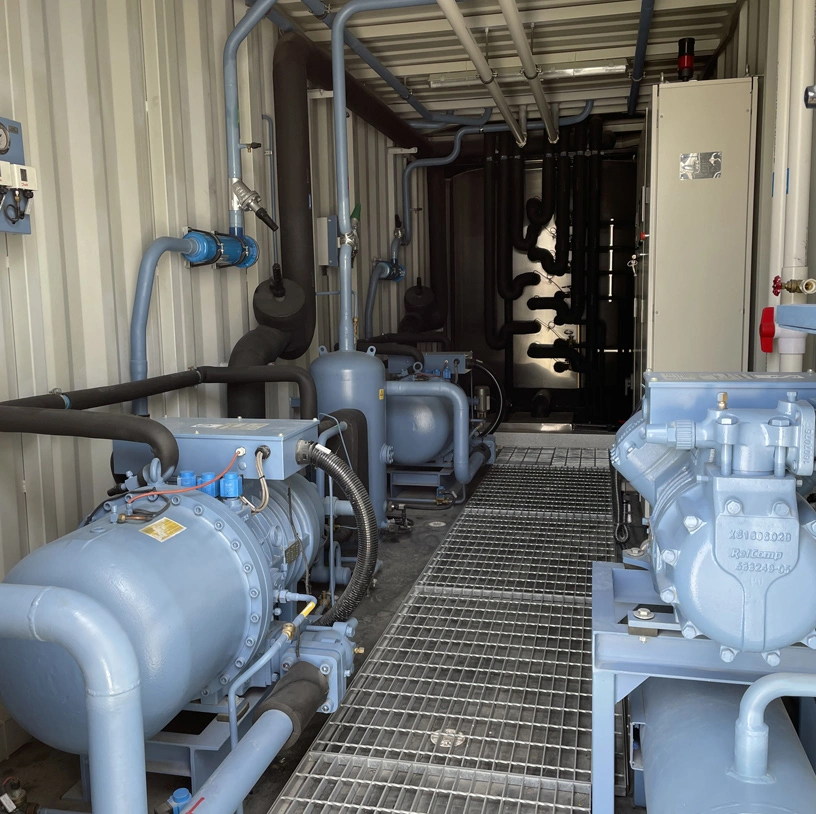

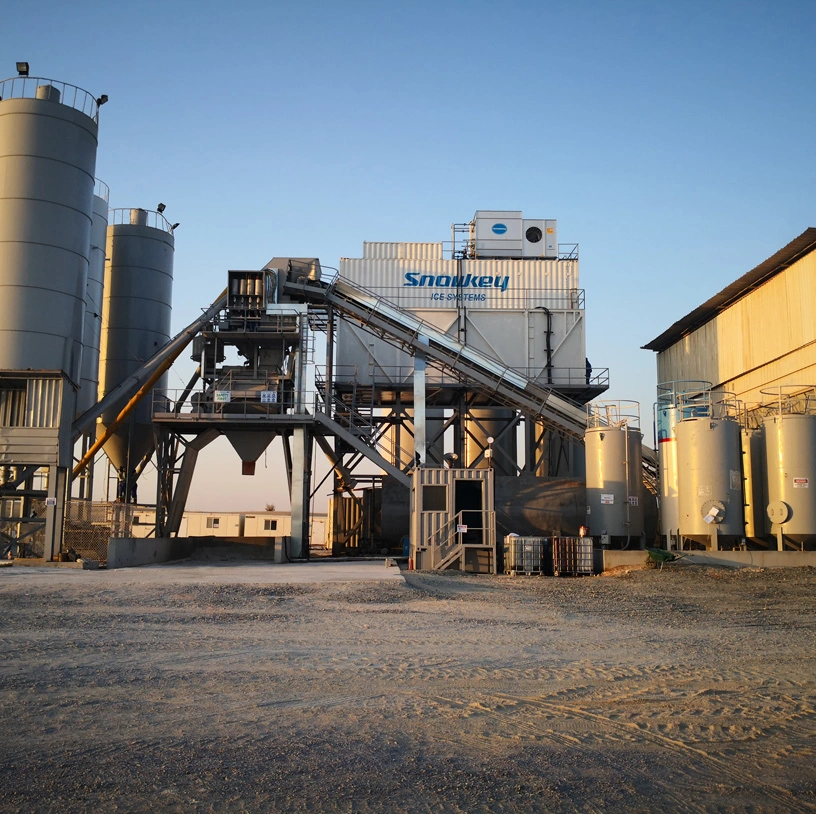

FSE's flake ice machines produce thin ice flakes. These ice flakes have a large surface area and melt quickly. This enables rapid cooling of concrete. The machines are equipped with automated ice storage and conveying systems. This ensures continuous and efficient ice supply. Production capacities range from 10 tons per day to 200 tons per day. These machines are ideal for projects requiring fast cooling and high output.
Containerized Flake lce Plant System Specifications (CF) | |||||||||||||||
Model | CF15 | CF20 | CF25 | CF30 | CF35 | CF40 | CF40D | CF50D | CF60D | CF70D | CF80D | CF90D | CF100D | CF120 | |
Daily Capacity (Tons/Day) | 15 | 20 | 25 | 30 | 35 | 40 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | |
Water Supply Volume (m³/h) | 0.63 | 0.83 | 1.04 | 1.25 | 1.46 | 1.67 | 1.67 | 2.08 | 2.50 | 2.92 | 3.33 | 3.75 | 4.17 | 5.00 | |
Necessary Refrigeration Capacity (kw) | 75 | 100 | 125 | 150 | 175 | 200 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
Installed Refrigeration Capacity (kw) | 94.8 | 102.9 | 139.5 | 178.4 | 197 | 219.2 | 205.8 | 279 | 356.8 | 394 | 438.4 | 503 | 543.6 | 676 | |
installed power(kw) | 65.3 | 82 | 94 | 123.4 | 139.5 | 161.5 | 157.8 | 181.7 | 242.5 | 282.7 | 316.7 | 376.7 | 417 | 458 | |
COP(kw/kw) | 1.65 | 1.53 | 1.58 | 1.53 | 1.45 | 1.51 | 1.59 | 1.62 | 1.55 | 1.48 | 1.53 | 1.53 | 1.52 | 1.51 | |
Container Specification | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | 40'HQ | |

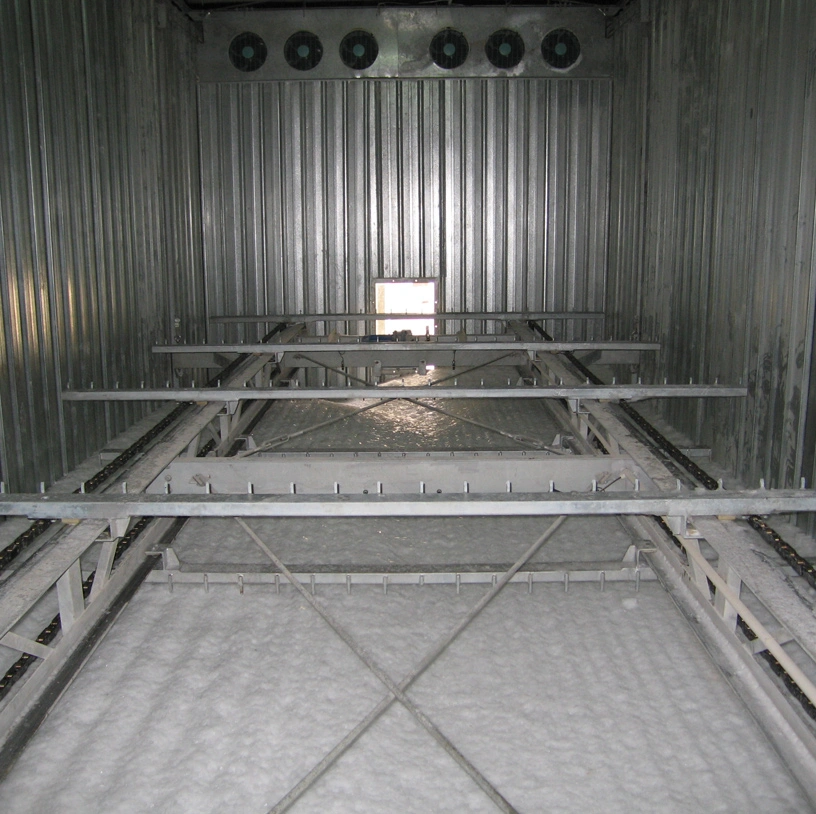

Ice Storage Parameter Table | ||||||
Model | Nominal ice | Type | L(MM) | W(MM) | H(MM) | Net weight(Tons) |
AIS8 | 14 | Containerized | 6058 | 2438 | 2896 | 7.5 |
AIS18 | 29 | Containerized | 12192 | 2438 | 2591 | 12.3 |
AIS23 | 36 | Containerized | 12192 | 2438 | 2896 | 13.6 |
AIS35 | 67 | Combined | 12192 | 3530 | 3715 | 20.4 |
AIS40 | 81 | Combined | 12192 | 4130 | 3715 | 22.4 |
AIS50 | 98 | Combined | 12192 | 5191 | 3565 | 23.3 |
AIS50S | 98 | Combined | 12192 | 4130 | 4195 | 25.3 |
AIS60 | 117 | Combined | 12192 | 5191 | 3965 | 26.1 |
AIS75 | 128 | Combined | 12192 | 5191 | 4195 | 26.6 |
AIS90 | 159 | Combined | 12192 | 5191 | 4865 | 28.3 |
AIS100 | 200 | Combined | 15000 | 5191 | 4965 | 41.5 |
